General Profile

SECTION : DAVAO CITY DIVERSION RD
LOCATION : DAVAO CITY
STATION LIMITS : K1504 + 588
PHYSICAL TARGET : 1 NO. OF BRIDGE
BRIDGE ID : B01457MN
ALLOCATION : 5,000,000.00

Design Analysis

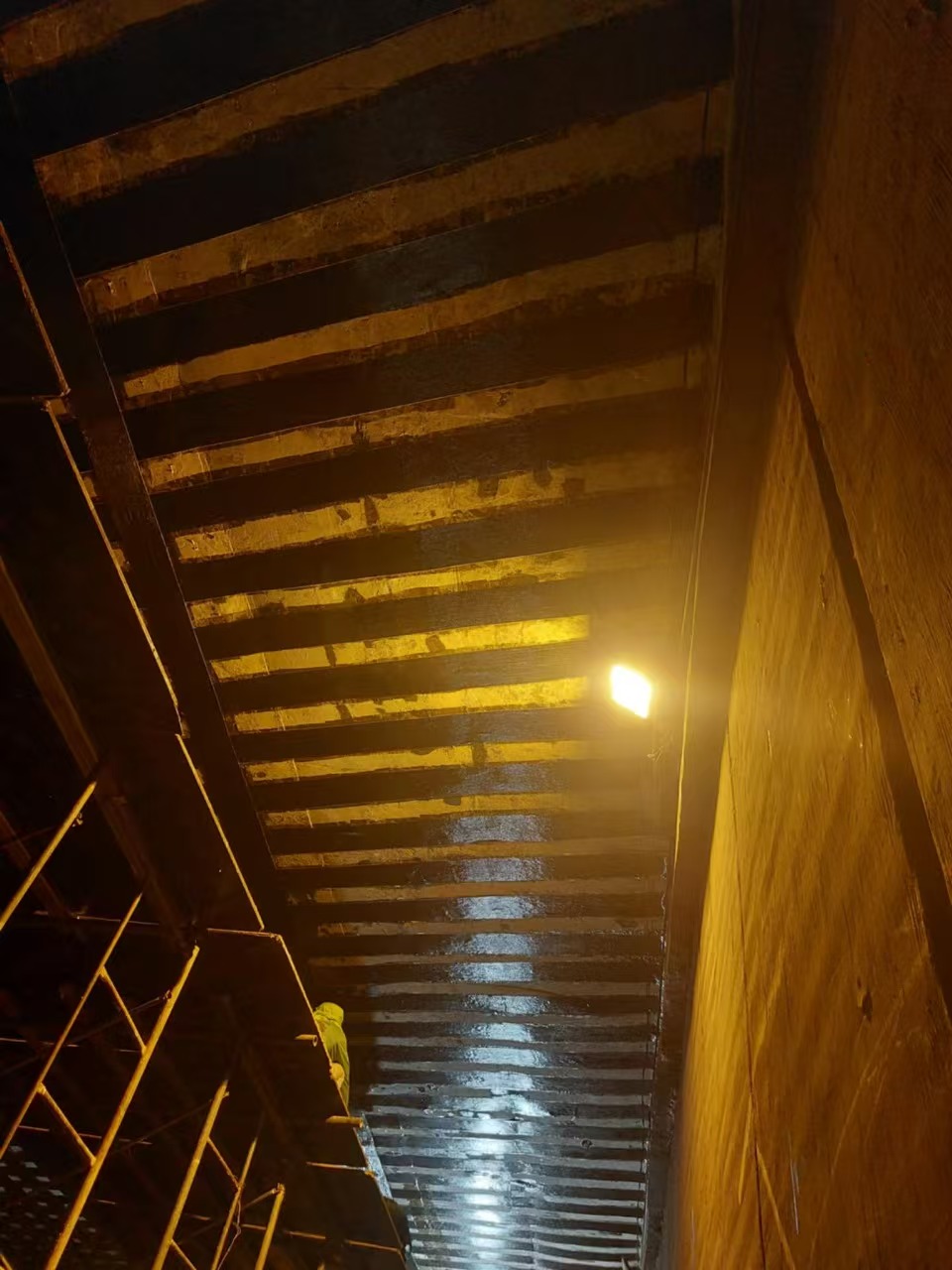

Final Work

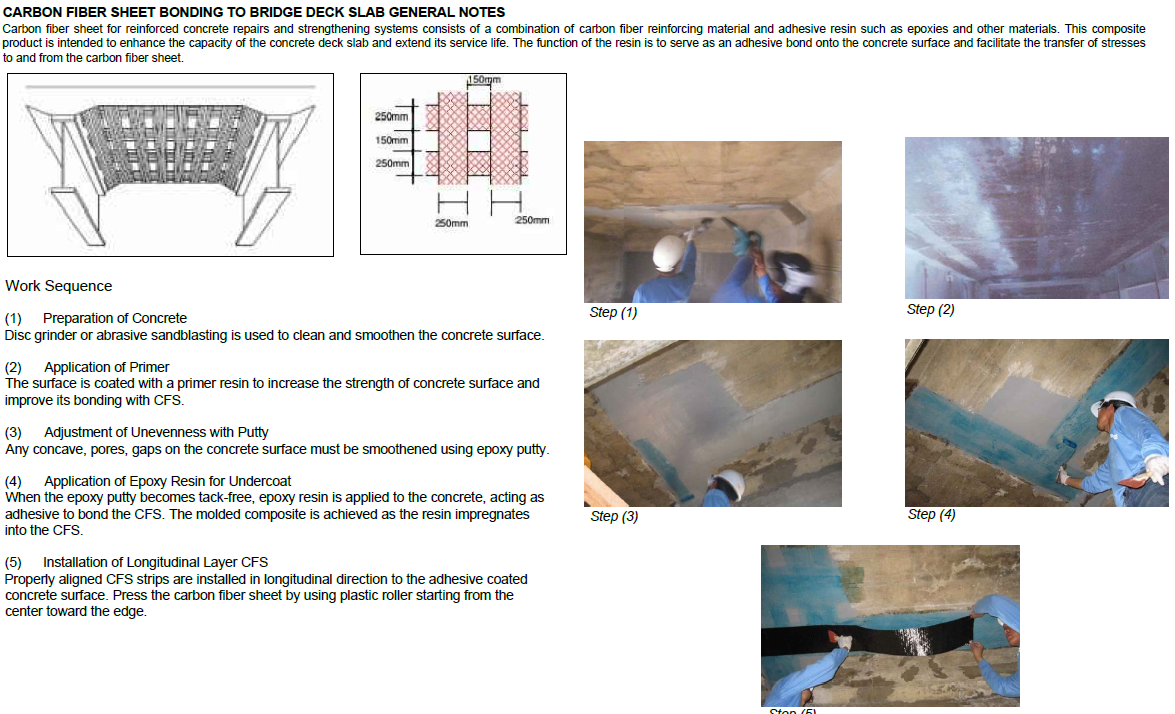

A. Retrofitting Process

1. Surface Preparation: Grind cracks, clean with epoxy injection.

2. Fabric Installation:

   • Lay WFC-300 sheets in unidirectional orientation.

   • Saturate with epoxy, remove air bubbles.

B. Quality Assurance

• Adhesion tests (pull-off strength ≥2.5 MPa)
